Deep Links SSO Integration (SAML)

The step-by-step integration mechanism required for Webassessor “Deep Links” Single-Sign On (SSO) implementation using the SAML standard.

This document outlines the step-by-step integration mechanism required for Webassessor “Deep Links” Single-Sign On (SSO) implementation using the SAML standard. This enhanced, custom SSO implementation enables client/Kryterion SSO integrations for registration or launch of an exam in Webassessor.

Use cases addressed by this enhanced SSO integration include:

Seamless candidate access to the “Instructions” page to take an exam with SSO.
Seamless candidate access to the “Testing Center selection” page (KTN) with SSO.
Seamless candidate access to the “Calendar” page (OLP) with SSO.

All of the preceding options can be supported by the same SSO call. Client needs will dictate which parameters are passed in the SSO call. The integration specification will be generic enough to accommodate most clients’ needs as of December 5, 2023.

References

[SAML]: The SAML specification documentation is available at: http://saml.xml.org/saml-specifications

Prerequisites

Clients wishing to integrate with Webassessor SSO using SAML specs should either have a properly configured SAML Identity Provider (IdP) server in-house or be able to use a 3rd party IdP like Okta, Salesforce, etc.
Webassessor must list the applicable client (entity), the associated client region, and client brand since they are part of communication during SSO calls.

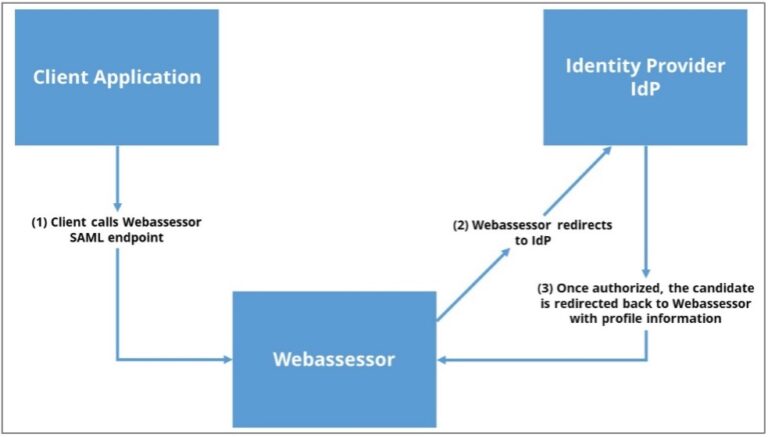

Integration Points and Flows

Implementation Steps

Step 1: Client provides the SAML Identity Provider (IdP) server details to Kryterion

Before an integration can be set up, the client must provide SAML IdP server details (URL & login information) to Kryterion. During the configuration of the metadata URL from the client, please make sure the entity id within this file matches the IDP URL they provide. The data allows Kryterion to register Webassessor as an application authorized to access the client’s User Profile information. The authorization enables communication with the client’s IdP server.

Metadata URI	Metadata URL address of SAML IdP server that will provide authorization
IDP ID/URI	Identity URL address of SAML IdP server that will provide authorization

Step 2: Client adds Webassessor information into their system

SSO URI

Sandbox: https://sb01.webassessor.com/SsoService/saml/SSO
Production: https://www.webassessor.com/SsoService/saml/SSO

Metadata URL

Sandbox: https://sb01.webassessor.com/SsoService/saml/metadata
Production: https://www.webassessor.com/SsoService/saml/metadata

Step 3: Client uses the following links to initiate the SSO workflow

Sandbox: https://sb01.webassessor.com/SsoService/doSaml ? provider={PROVIDER}&brand={BRAND}&postLoginParams={POSTLOGINPARAMS}
Production: https://www.webassessor.com/SsoService/doSaml ? provider={PROVIDER}&brand={BRAND}&postLoginParams={POSTLOGINPARAMS}
{PROVIDER} and {BRAND} values are unique to each Client
{POSTLOGINPARAMS} are:
1. For Registering for an Exam:
  - REGISTER-SCHEDULE-{EXAM ID}-PROCTORED-USD-100.00
2. For Rescheduling an Exam Registration:
  - REGISTER-RESCHEDULE-{REG ID}
3. For Cancelling an Exam Registration:
  - REGISTER-CANCELLATION-{REG ID}
4. For Launching an Exam Registration:
  - LAUNCH-{REG ID}

PARAMETER	SUPPLIED BY	DESCRIPTION	MANDATORY	EXAMPLES
provider	Webassessor	A unique name saved in the Webassessor database to identify client	YES	companyx, companyz
brand	Webassessor	The client’s brand name created in Webassessor	YES	COMPANYX, COMPANYZ
postLoginParams	client	This is used for post login actions	YES	REGISTER-
		such as registration or launching an		SCHEDULE-
		exam. The separator is the “^” sign		123456-KTN-
		to parse the incoming parameters.		USD-100.00
		Registration:		REGISTER- RESCHEDULE-
		For Registration after Login,		123456
		accepted parameter combinations & scenarios: REGISTER-SCHEDULE- EXTERNAL_REFERENCE_ID- DELIVERY_TYPE-		REGISTER- CANCELLATION- 123456 LAUNCH-123456
		CURRENCY-PRICE
		REGISTER-RESCHEDULE-
		REGISTRATION_ID
		REGISTER-CANCELLATION-
		REGISTRATION_ID
		Notes:
		SCHEDULE call –
		“EXTERNAL_REFERENCE_ID”
		is whatever is set at the product
		level in Webassessor.
		RESCHEDULE call –
		REGISTRATION_ID should be
		the “REGISTRATION_ID” of the
		registration in Webassessor
		(This will be available to the
		clients as a result of the “Add
		Registration” Webservice they
		will use to create the
		registration in Webassessor or
		“Get Registration” call they
		make at the end of SSO
		“SCHEDULE” call above).
		CANCEL call –
		REGISTRATION_ID should be
		the “REGISTRATION_ID” of the
		registration in Webassessor
		(This will be available to the
		clients as a result of the “Add
		Registration” Webservice they
		will use to create the
		registration in Webassessor or
		“Get Registration” call they
		make at the end of SSO
		“SCHEDULE” call above).
		Launch:
		For Launch after Login, accepted
		parameter combinations
		“LAUNCH-REGISTRATION_ID“
		Notes:
		“REGISTRATION_ID” for launch
		will always be the
		“REGISTRATION_ID” of the
		registration in Webassessor (This
		will be available to the clients as a
		result of the “Add Registration”
		Webservice they will use to create
		the registration in Webassessor or
		“Get Registration” call they make at
		the end of SSO “SCHEDULE” call
		above).

Here is an in-depth explanation of POSTLOGINPARAMS

Registration related Parameters explanation:

VARIABLE	DEFINITION
REGISTER	This value is always REGISTER and indicates that the post login action is Registration.
SCHEDULE, RESCHEDULE, CANCEL	Acceptable values in the call above
CLIENT_PRODUCT_UNIQUE_ID	This is the unique external reference id of the product. Clients can provide this when creating a product in Webassessor.
DELIVERY_TYPE	Delivery Type of the intended exam registration. Expected Values: KTN, OLP, NP
CURRENCY	Currency of the amount. Accepted Values: USD, EUR, GBP, JPY, CAD, AUD
PRICE	Price of the exam. (If price is not applicable then a default of “0.00” should be sent). Example: 23 or 23.0 or 23.00

Launch related parameters explanation:

VARIABLE	DEFINITION
LAUNCH	This value is always LAUNCH and indicates that the post login action is Launching an exam.
REGISTRATION_ID	Registration id of the exam that needs to be launched.

Once the control reaches Webassessor, Webassessor initiates SAML authentication by calling the IdP using the details configured on our end. On the IdP login page, once the candidate provides their login information and is successfully logged in, the IdP redirects back to Webassessor with the candidate’s profile information.

Using profile information obtained in the previous step, Webassessor retrieves the user profile and logs the user into our application.

Step 4: (Optional) Client provides a Redirect URL to redirect candidates after they complete the transaction

This feature is purely for user continuity and is candidate experience related. It is designed for clients that want their candidates returned to their application following candidate completion of the Deep Links-targeted Webassessor transaction.

The Webassessor SSO configuration page parameter “Client Redirect URL,” when populated, allows Kryterion to redirect candidates immediately upon completion of the targeted Webassessor transaction. When no value is given for the Client Redirect URL during setup, the candidate will be logged out of Webassessor as the last step. The Client Redirect URL must be a client-specified, standard URL.

Access to certain features is restricted based on role type in an effort to reduce item exposure and promote process integrity. Please see the member role description page for information on permissions.
